Medium Machine Anti-Vibration Mounts

Description

A Revit / BIM Family object file is available for this product.

MM 70×70 Medium Machine Anti-Vibration Mounts

This Sylomer® material is often used as an alternative to Sorbothane.

Sylomer® is a highly efficient, microcellular, resilient polyurethane compound. It is oil resistant with a temperature range of -30°C to +70°C.

These Machine anti-vibration mounts are fixed via the internal threaded nut. A range of densities are available for a wide range of loads. Where a mechanical fix is not possible the mounts can still be used, in many applications, because the top rubber bonded to the metal plate acts as an anti-skid surface.

Min. Max. load is PER MOUNT. To select the correct type you need to take the total machine weight, divide that by the number of mounts to be used,then use the table below to make sure there is no overload whilst also maintaining a minimum loading for isolation efficiency.

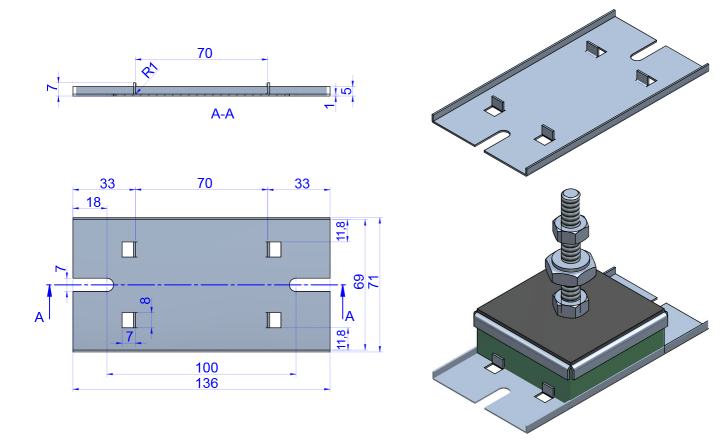

Technical Drawings

Deflection graphs

Types

Type	Min. Load, kg	Max. Load, kg	Min load natural freq, Hz	Max load natural freq, Hz
MM55	10	25	24.1	11.4
MM110	25	45	17.7	11.5
MM220	50	75	16.3	11.3
MM450	75	150	15.8	10.6
MM 850	150	250	14.6	11.3
MM1200	250	310	11.3	10.1

With optional leveling kit (LK)

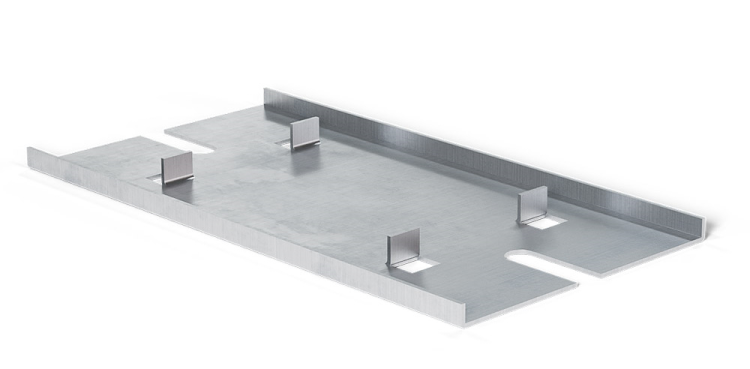

PLEASE NOTE: This product is now also available with the following extras:

M8, M10 or M12 thread
A leveling kit including threaded rod, nuts and washers
A larger footprint 100x100mm base for loads up to 821kg (M16 threaded)
An even larger footprint 150x150mm base for loads up to 2000kg (M16 threaded)
A smaller ‘footprint’ of 40mm x 40mm which can accommodate loads as low as 7.5kg per mount
Please email us for further information
